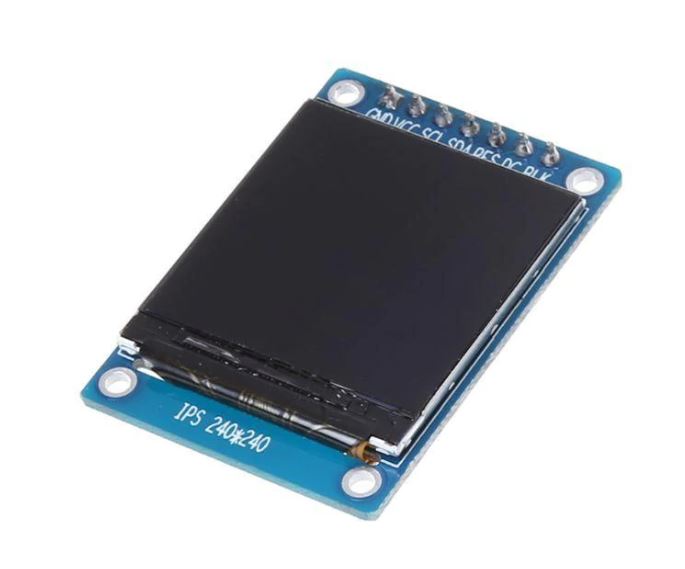

1.3 inch TFT LCD Display

1.3 inch TFT LCD Display

€9.99

Out of stock

Display Mode     Normally black IPS

Display Format     Graphic 240RGB*240 Dot-matrix

Input Data     SPI interface

Drive IC     ST7789VW

Dimensional outline     27.78(W)*39.22 (H)*3.0+/-0.1(T)mm

Resolution     240RGB*240 Dots

LCD Active area     23.4 (W)*23.4 (H)

Dot pitch     0.0975(H) x 0.0975(V) mm

Viewing Direction     All View

Operating Temperature     -20~70°C



  1. Pin Descriptions:

PIN No     Symbol     Description

1     GND     Ground

2     VCC     Power 3.3V

3     SCL     Serial clock pin.

4     SDA     Serial data input

5     RES     LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6     DC     Data/Command Control

7     BLK     Backlight control pin
