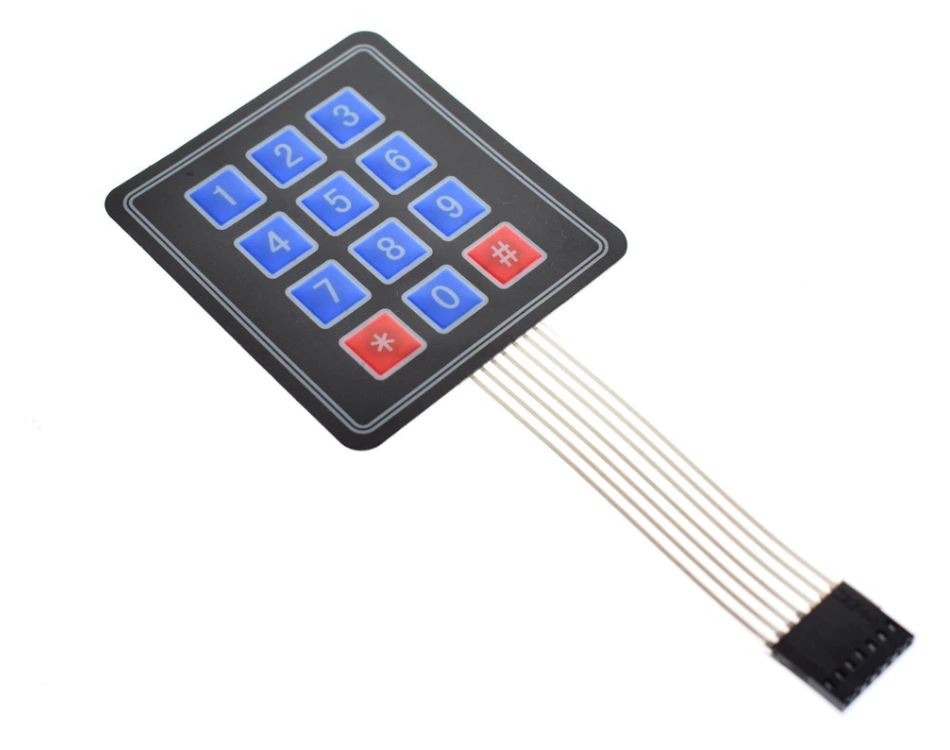

4X3 Matrix Keyboard – Keypad

4X3 Matrix Keyboard – Keypad

€2.50

The 4X3 matrix keyboard is a keypad consisting of 12 keys arranged in a 4 by 3 grid pattern. Each key represents a different character or function and is designed for easy input and control. This keypad is commonly used in various electronic devices and applications, such as electronic lock systems, security systems, ATM machines, and calculators. The 4X3 matrix keyboard provides a simple and efficient way to interact with these devices, allowing users to input numbers, letters, and commands with ease. With its compact size and durable construction, the 4X3 matrix keyboard is a reliable and convenient input solution for a wide range of electronic devices.

Pad Size: 69.2 x 76.9 x 0.8mm
Cable Length: 3-1/3" or 86mm (include connector)
Connector: Dupont 7 pins, 0.1" (2.54mm) Pitch
Mount Style: Self-Adherence
Max. Circuit Rating: 35VDC, 100mA
Insulation Spec.: 100M Ohm, 100V
Dielectric Withstand: 250VRms (60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: -20 to +40 °C
