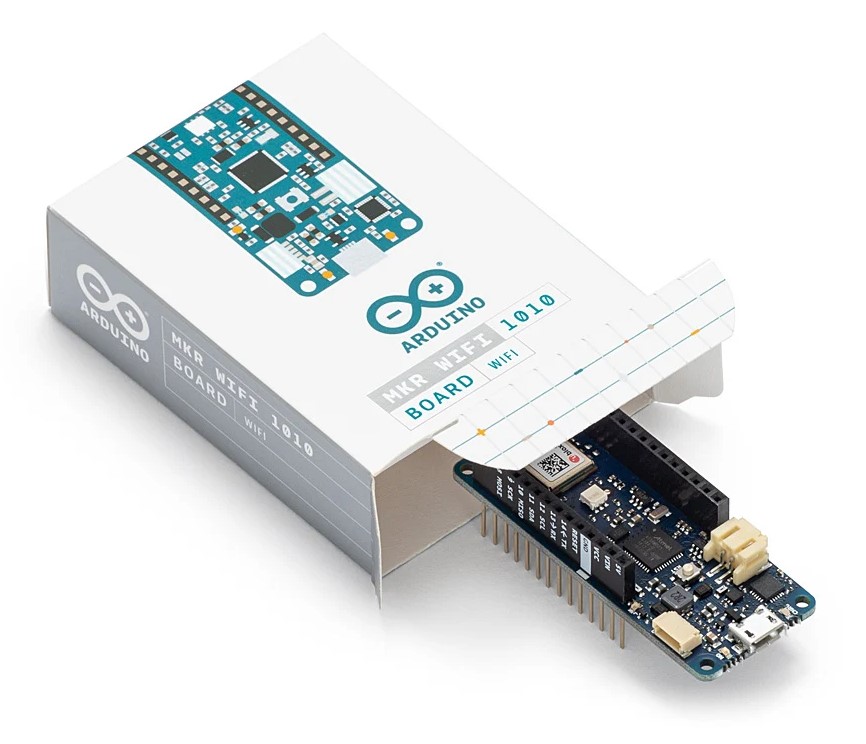

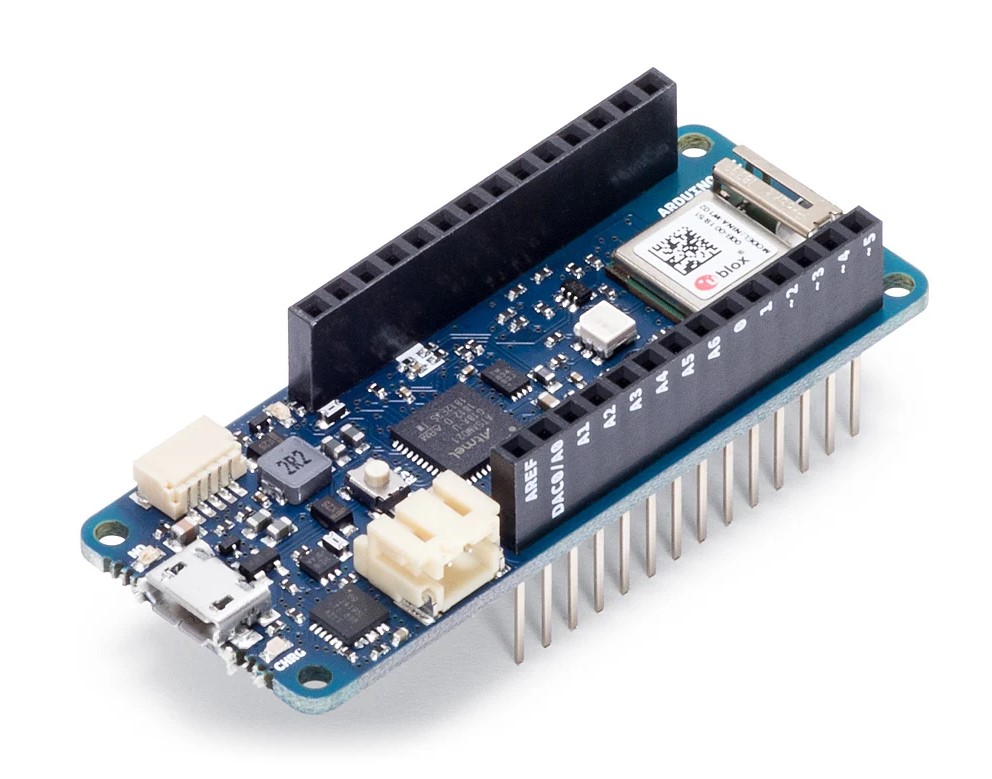

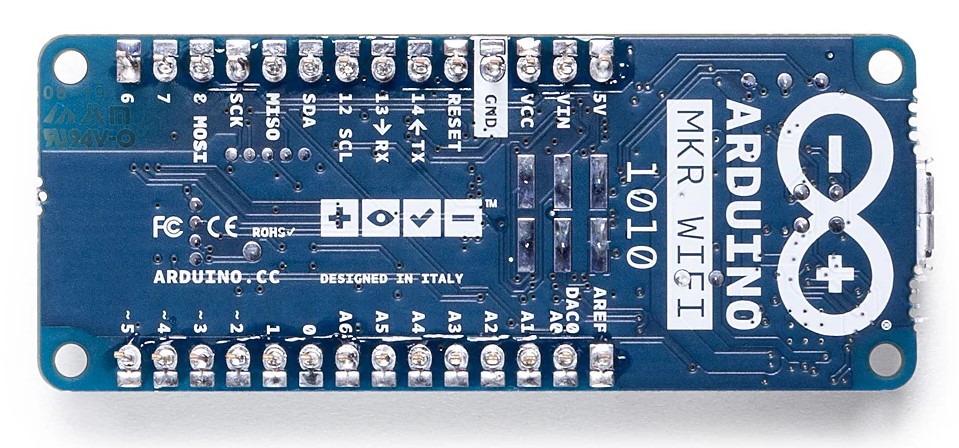

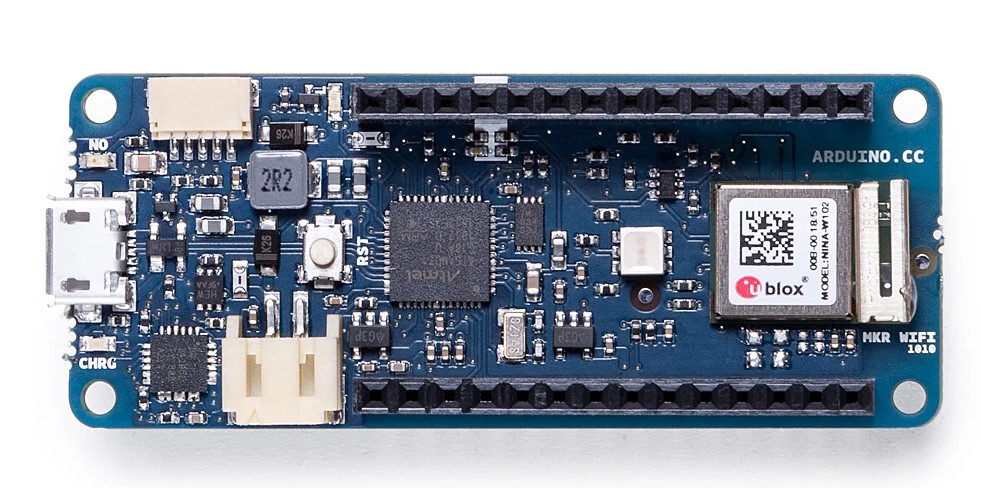

Arduino MKR WiFi 1010
Arduino MKR WiFi 1010
€79.99
Overview
The Arduino MKR WiFi 1010 is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, orif you want to create a Bluetooth® Low Energy device sending data to a cellphone, the MKR WiFi 1010 is your one-stop-solution for many of the basic IoT application scenarios.
Tech specs
The Arduino MKR WiFi 1010 is based on the SAMD21 microcontroller.
Microcontroller | SAMD21 Cortex®-M0+ 32bit low power ARM® MCU (datasheet) |
Radio module | u-blox NINA-W102 (datasheet) |
Board Power Supply (USB/VIN) | 5V |
Secure Element | ATECC508 (datasheet) |
Supported Battery | Li-Po Single Cell, 3.7V, 1024mAh Minimum |
Circuit Operating Voltage | 3.3V |
Digital I/O Pins | 8 |
PWM Pins | 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4) |
UART | 1 |
SPI | 1 |
I2C | 1 |
Analog Input Pins | 7 (ADC 8/10/12 bit) |
Analog Output Pins | 1 (DAC 10 bit) |
External Interrupts | 10 (0, 1, 4, 5, 6, 7, 8,9, 16 / A1, 17 / A2) |
DC Current per I/O Pin | 7 mA |
CPU Flash Memory | 256 KB (internal) |
SRAM | 32 KB |
EEPROM | no |
Clock Speed | 32.768 kHz (RTC), 48 MHz |
LED_BUILTIN | 6 |
USB | Full-Speed USB Device and embedded Host |
Length | 61.5 mm |
Width | 25 mm |
Weight | 32 gr. |
