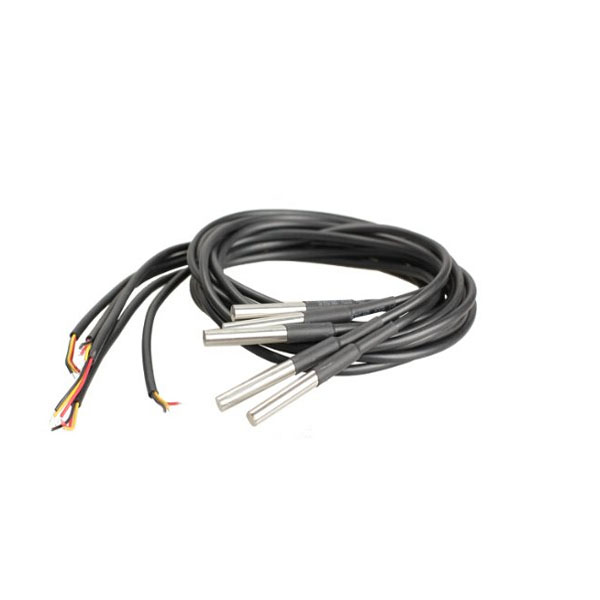

DS18B20 Sensor

The DS18B20 sensor is a digital temperature sensor that uses a 1-Wire interface for communication. It provides accurate and reliable temperature measurements with a resolution of up to 12 bits. The sensor can operate in a wide temperature range, from -55°C to +125°C, making it suitable for a variety of applications. With its compact size and low power consumption, the DS18B20 sensor is easy to integrate into various electronic devices. It has a unique 64-bit serial code that allows multiple sensors to be connected to the same data line, simplifying the wiring and enabling temperature monitoring in different areas. The sensor is commonly used in industrial, automotive, and consumer electronics applications, where precise temperature monitoring is crucial for performance and safety.

Specification

• Power Supply Range: 3.0V to 5.5V

• Adjustable Resolution: 9 - 12

• Operating Temperature Range: -55°C to +125°C

• Output lead: Red (VCC), Black (GND), Yellow (DATA)

• Cable length: 100 cm

• Stainless Steel Tube Size: 6× 45mm
