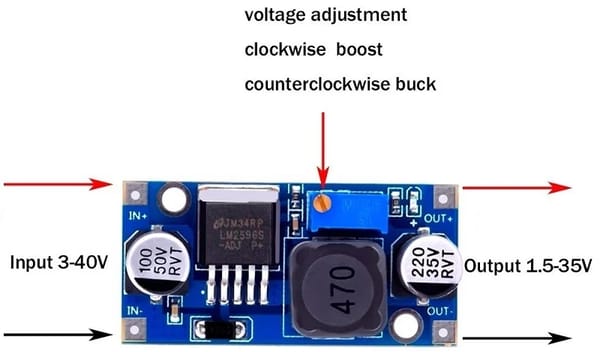

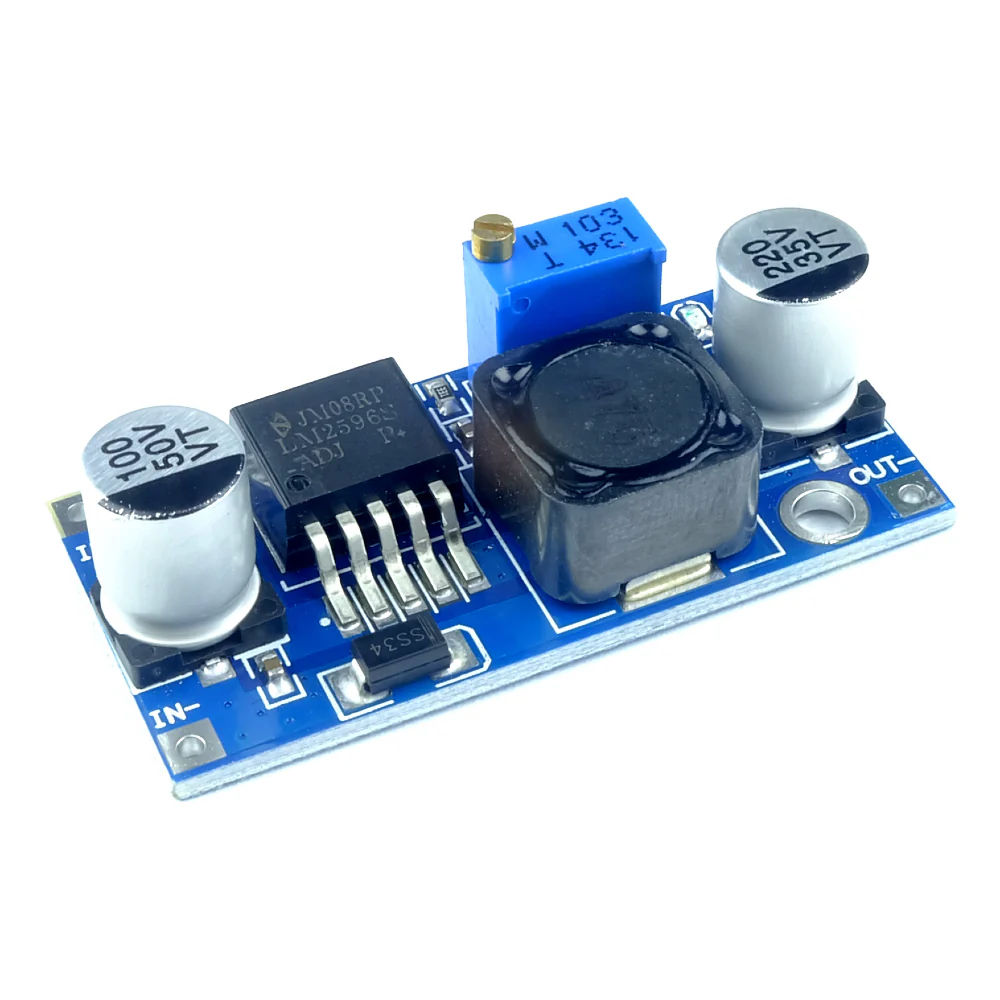

LM2596 LM2596S with SMD LED DC-DC Step-Down Module

LM2596 LM2596S with SMD LED DC-DC Step-Down Module

€5.99

Technical Details

  • Input Voltage (V) : 3-40V

  • Output Voltage (VDC) : 3.3/5/12V

  • Output current : Rated current is 2A, maximum 3A(Additional heatsink is required)

  • Switching Frequency(KHz) : 150

  • Conversion Efficiency : up to 92%

  • Output Ripple : 30mA (maximum)

  • Load Regulation : ± 0.5%

  • Voltage Regulation : ± 0.5%

  • Operating Temperature (°C) : Industrial grade (-40 to +85 )

  • Dynamic Response speed : 5% 200uS
