SIM808 GPS-GSM-GPRS Module

Introduction :

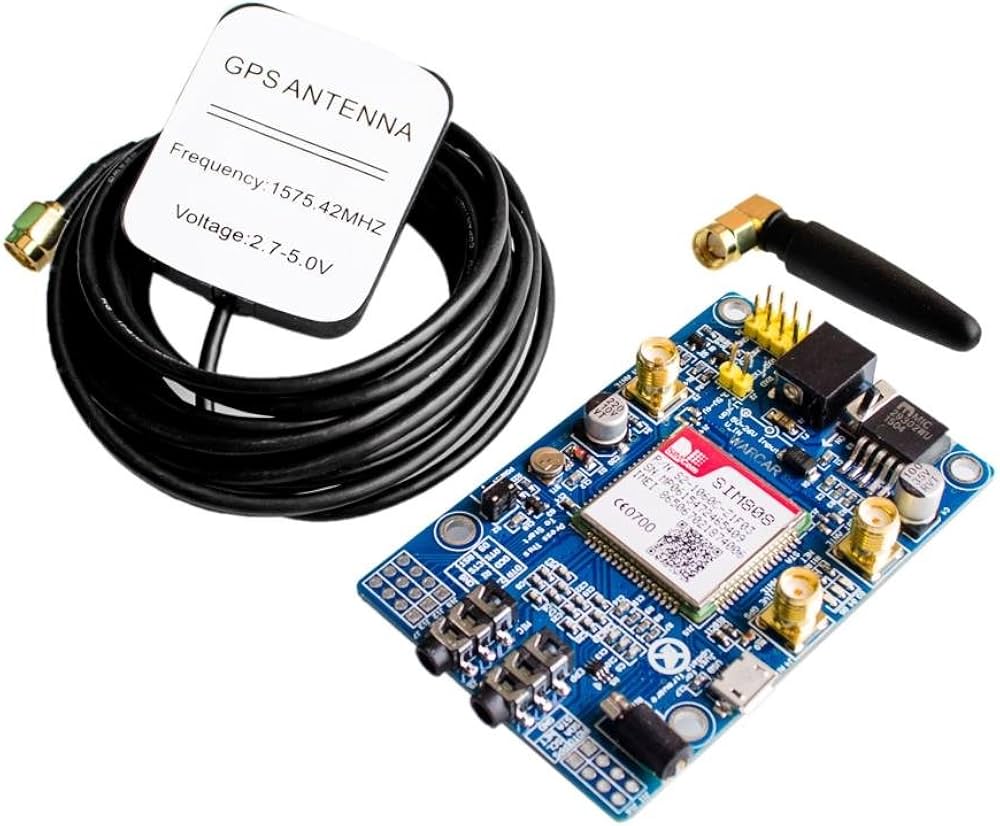

 GPRS GSM GPS Shield based on the SIM808 GSM GPRS GPS all-in-one cellular phone module.

You can add location-tracking, voice, text, SMS and data to your project.

This shield fits  yourArduinoor , it is easy to use.

This shield fits right over your Arduino or compatible.

IT is a powerful GSM cellular module (we use the latest SIM808) with integrated GPS.

This board based on the latest SIMCOM SIM808 GSM/GPS module, it offers cellular GSM and GPRS data along with GPS technology for satellite navigation.

The board features ultra-low power consumption in sleep mode, giving the project incredibly long standby times.

Features :

• Quad-band 850/900/1800/1900MHz

• GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)

• GPRS mobile station class B

• Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

• Supports charging control for Li-Ion battery

• Supports Real Time Clock

• Supply voltage range 3.4V ~ 4.4V

• Integrated GPS/CNSS and supports A-GPS

• Supports 3.0V to 5.0V logic level

• Low power consumption, 1mA in sleep mode

• Supports GPS NMEA protocol

• Compact size 27mm x 46mm x 10mm

• Standard SIM Card

Applications :

• GPRS network nodes

• Remote communications

• Satellite positioning

• Real-time car tracking systems

• Security

• Internet of things (IoT)

Package :

• SIM808 Moudle.

• GSM Antenna.

• GPS Antenna.
