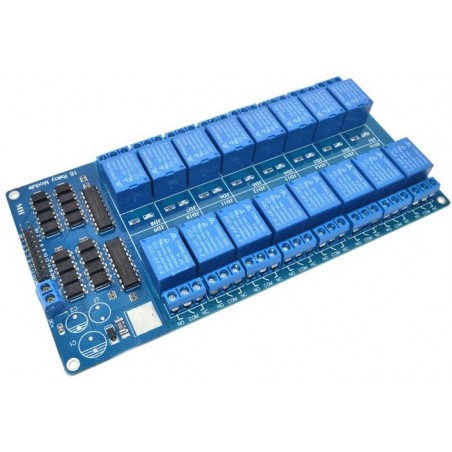

16 - Sixteen channel relay - 5V

A sixteen channel relay with a voltage rating of 5V is a versatile and efficient electronic device. This relay module can control up to sixteen different circuits simultaneously, making it ideal for complex automation systems or industrial applications. The 5V voltage requirement ensures compatibility with a wide range of electronic devices, making it easy to integrate into existing setups. With its multiple channels, this relay module allows for precise and reliable control over various electrical equipment, such as lights, motors, or sensors. Whether used in home automation projects or in industrial settings, this sixteen channel relay provides a reliable and convenient solution for managing multiple circuits with ease and efficiency.

SPECIFICATION

• The use of the industry's top quality optocoupler isolation, strong anti-interference ability, stable performance

• 5V 16-Channel Relay interface board, and each one needs 15-20mA Driver Current

• 1-16 road can be any full on / off, or any road.

• Equiped with high-current relay, AC250V 10A ; DC30V 10A

• Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

• Indication LED’s for Relay output status

• Board size:  188x90x20mm

What is a Relay

A relay is an electrically operated switch. Many relays use an electromagnet to mechanically operate a switch, but other operating principles are also used, such as solid-state relays. Relays are used where it is necessary to control a circuit by a separate low-power signal, or where several circuits must be controlled by one signal.

Relays work on electromagnetism, When the Relay coil is energized it acts like a magnet and changes the position of a switch. The circuit which powers the coil is completely isolated from the part which switches ON/OFF, This provides electrical isolation. This is the reason we can control a relay using 5V’s from an arduino and the other end of it could be running an 220 to 240V appliance, the 240V end is completely isolated from the 5V arduino circuitry.
