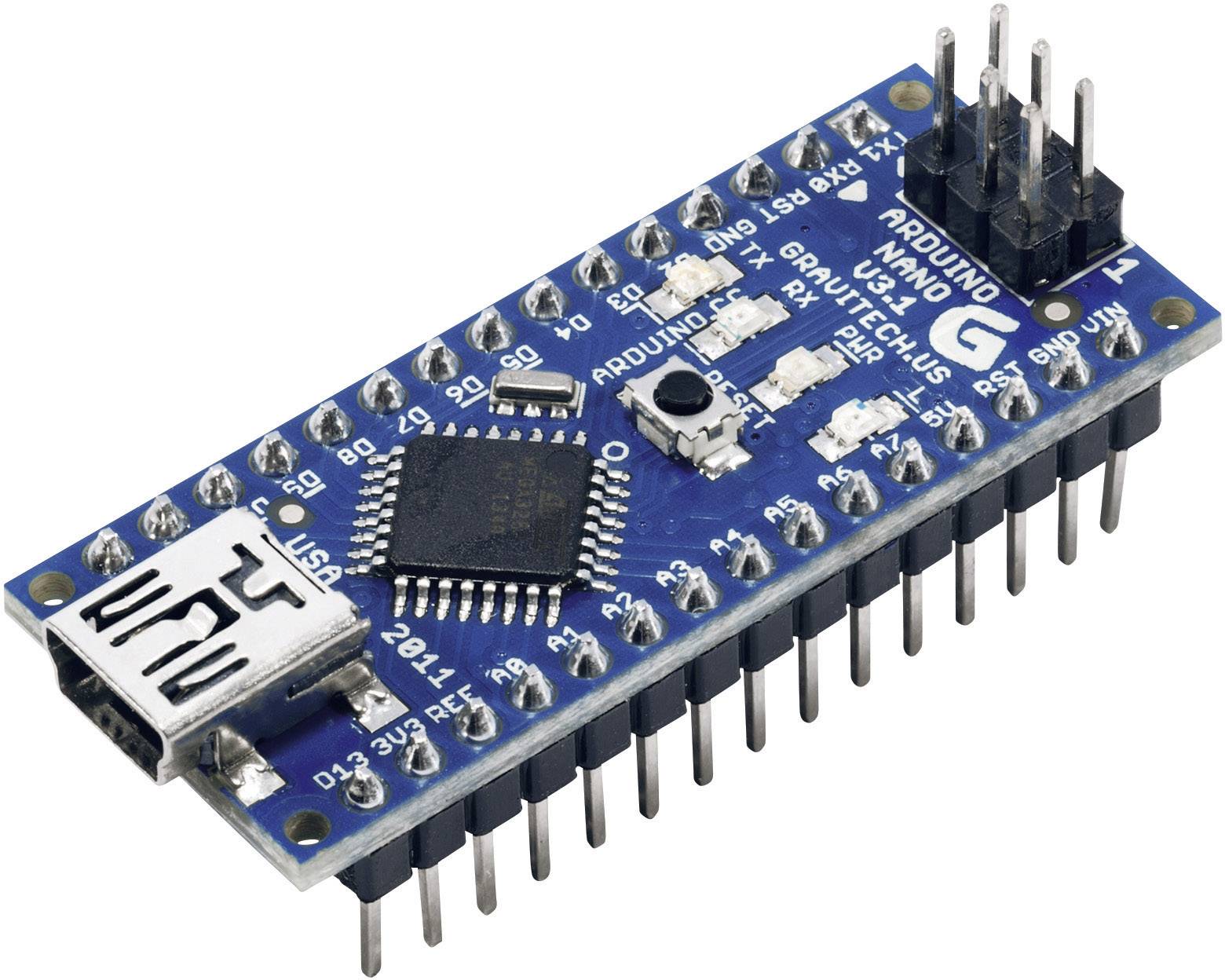

Nano Development Board Compatible with Arduino (Chip ATmega328) (clone)

Nano Development Board Compatible with Arduino (Chip ATmega328)

€13.99

Nano Development Board Compatible with Arduino

This product is a clone one but has almost the same pins and features with popular Arduino Nano. The original one of this product is Arduino Nano . The discrepancies of this product are USB to serial converter chip and some others. This differences reduce the price respect to original Arduino NANO.

On the latest clones of Arduino models, The CH340 USB - serial converter chip has been used instead of Atmega 16u2 of the FTDI chip.

The popular USB to serial chip CH340 works well and its drivers is already installed on Win 8+ and Linux. Unfortunately if you use Win 7 or MAC OS X you need to install your drivers manually

Technical Specifications:

  • Microcontroller: ATmega328

  • Operating voltage: 5 V

  • Supply voltage (recommended): 7-12 V

  • Supply voltage (limits): 6-20 V

  • Number of digital I/O pins: 14

  • Number of PWM pins: 6

  • Number of analog input pins: 8

  • Max DC current for each I/O pins: 40 mA

  • Flash memory: 32 kB (ATmega328, 0.5 kB is used by bootloader)

  • SRAM: 2 kB (ATmega328)

  • EEPROM: 1kB (ATmega328)

  • Clock speed: 16 MHz

  • Dimensions: 18.5mm x 43.2mm
